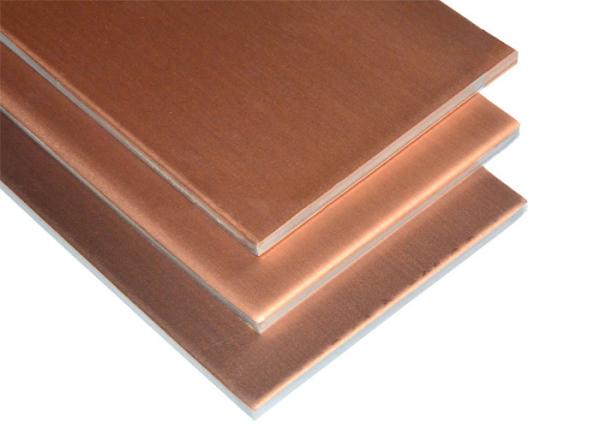

High combination rate copper clad steel with high performance cost
ratio and high strength
Copper clad steel belongs to the combination of non-ferrous metal
and steel. It has superior properties in life cycle, cost ,
strength and so on. ZEGOTA develop and produce high quality copper
clad steel with leading high strength, low cost and high bonding
rate clad metal by virtue of innovative technology, high-end
equipment and high-quality raw materials.
Advantages:
1. High combination rate: We make clad metal by cold rolling technology, then the
combination rate can improve 30% at least compared with welding
combination and explosion combination.
2. High performance cost ratio: It is low manufacturing cost by clad in physical process and
unique cold rolling technology without extra welding and explosion.
3. High strength: Using unique clad technology and taking advantage
of the high strength of steel, while copper is soft, the
combination of the two can make full use of its advantages include
of the high strength of steel and electric conductivity and
magnetic conductivity of copper.
Parameters:
| Clad material | Copper | Copper | Steel | Steel | Copper |
| Steel | Steel | Copper | Copper | Steel |
| Copper | Copper | / | / | Copper |
| Thickness(mm) | 0.01-4.0 | 0.04-4.0 | 0.01-4.0 | 0.01-4.0 | 0.01-4.0 |
| Width(mm) | 5.0-1500 | 5.0-1500 | 5.0-1500 | 5.0-1500 | 5.0-1500 |
| Tensile strength(MPa) | 260-320 | 480-580 | 480-580 | 400-480 | 480-580 |
| Yield strength(MPa) | 200-260 | 300-380 | 300-380 | 340-330 | 300-380 |
| Elongation(%) | ≥37 | ≥15 | ≥15 | ≥15 | ≥15 |
Application:
1. Military industry: Copper clad steel is used to replace the
shell made of traditional steel and copper, which not only
guarantees the original performance, but also has the
characteristics of corrosion resistance and good surface
lubrication.
2. Electronic industry: There are many gaskets in electronic
components, which are strong and thin. Copper clad steel can meet
the design requirements of various shapes and functions.
3. Cookware: Copper clad steel has good strength and plasticity,
which greatly improves the processing efficiency of products.
Copper has good magnetic conductivity, which can improve the
heating efficiency and uniformity of pots.
