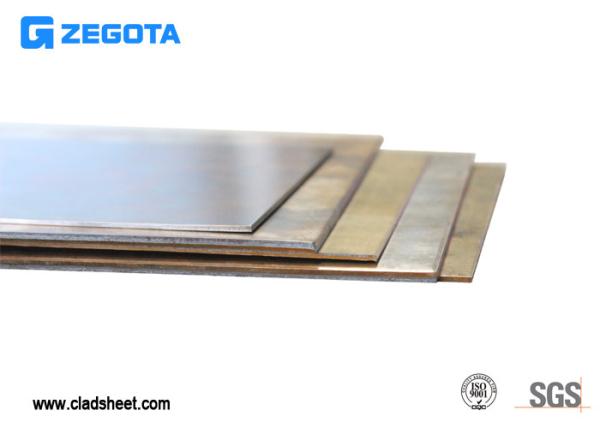

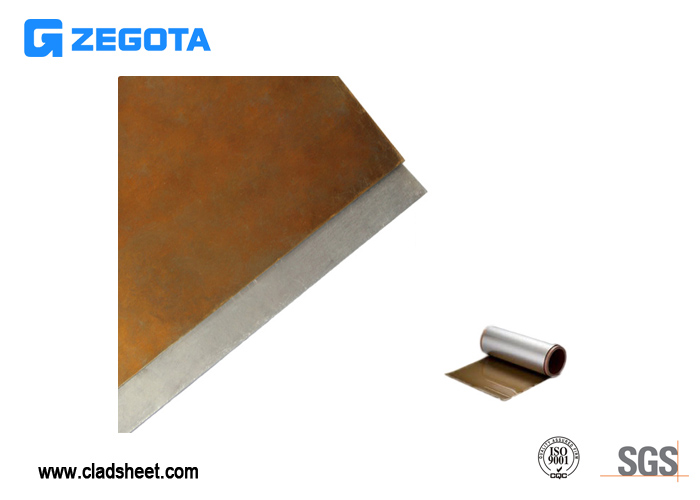

    High Performance Copper Clad Steel Sheet High Magnetic Conductivity

    Ask Lasest Price
    Brand Name : ZEGOTA
    Model Number : CCS113
    Certification : ISO9001:2008 , IATF/TS16949:2016 , ISO14001:2004 , CNAS
    Price : Negotiable
    Delivery Time : 10-15 Days
    Payment Terms : 100% T/T Before Shipment
    Supply Ability : 100000 Tons Per Year
    • Product Details
    • Company Profile

    High Performance Copper Clad Steel Sheet High Magnetic Conductivity

    Ultra thin copper clad steel clad copper with high performance cost ratio and high strength

    Copper clad steel clad copper belongs to the combination of non-ferrous metal and steel. It has superior properties in strength, cost , heat conduction and so on. ZEGOTA develop and produce high quality copper clad steel clad copper with leading high ductility, low cost and ultrathin clad by virtue of innovative technology, high-end equipment and high-quality raw materials.


    Advantages:

    1.Low cost: It is low manufacturing cost by clad in physical process and unique cold rolling technology without extra welding and explosion.

    2.High extensibility: Because copper is soft and excellent ductility, copper clad steel clad copper with 35% elongation improvement can be achieved by combining copper and steel together.

    3. Ultrathin:The minimum thickness of clad metal can be controlled in 0.05mm by our cold rolling knowhow and unique automatic gauge control technology.


    Parameters:

    Clad materialCopperCopperCopper
    SteelSteelSteel
    CopperCopperCopper
    Thickness(mm)0.01-4.00.04-4.00.01-4.0
    Width(mm)5.0-15005.0-15005.0-1500
    Tensile strength(MPa)260-320480-580480-580
    Yield strength(MPa)200-260300-380300-380
    Elongation(%)≥37≥15≥15

    Service


    1.fine after-sale services
    2.small order accepted
    3.samples available
