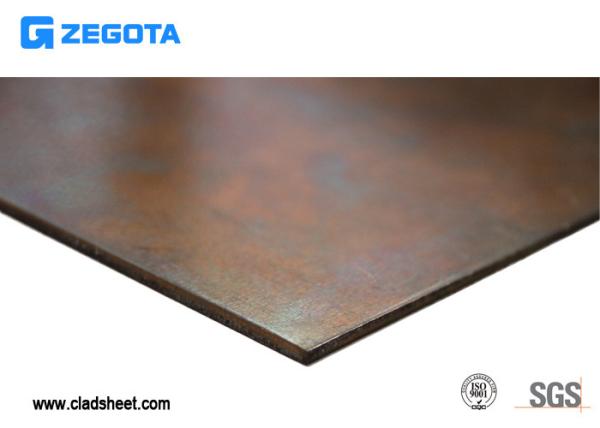

    Hot Rolled 3- Layer Copper Clad Steel Sheet Copper Plated Steel Sheet Copper Alloy Sheet

    Ask Lasest Price
    Brand Name : ZEGOTA
    Model Number : CCS137
    Certification : ISO9001:2008 , IATF/TS16949:2016 , ISO14001:2004 , CNAS
    Price : FOB,CIF,CFR
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : depend on your quantity
    Delivery Time : depend on your quantity
    • Product Details
    • Company Profile

    Hot Rolled 3- Layer Copper Clad Steel Sheet Copper Plated Steel Sheet Copper Alloy Sheet

    Hot rolled 3-layer copper clad steel sheet for electronic and electrical purposes


    Advantages:

    1.High extensibility: Because copper is soft and excellent ductility, steel clad copper clad steel with 35% elongation improvement can be achieved by combining copper and steel together.

    2. High strength: Using unique composite technology and taking advantage of the ,while copper is soft,high strength of steel, , the combination of the two can make full use of its advantages, which clad a special material.

    3.Ultra thin: By using the unique clad technology, the single-layer clad with can be compounded with 0.03mm base metal 0.01mm thickness , the total thickness can be up to 0.05mm, and the multi-layer clad can be made.


    Description:

    MaterialCopper and steel
    TechniqueCold rolling process, brazing process
    StandardSGS,ISO10949,ISO9001,IAF
    Thickness0.03mm-4.0mm
    WidthLess than 1000mm
    LengthCustomized
    Surface Treatmentcold rolling
    Delivery statusSoft, hard, semi hard
    Delivery formPlate, coil and strip
    Delivery time30-60 days
    PackingWooden case, tray, reel
    Deliverylogistics
    PaymentTT L/C

    Parameter:


    Clad materialCopperCopperCopper
    SteelSteelSteel
    CopperCopperCopper
    Thickness(mm)0.01-4.00.04-4.00.01-4.0
    Width(mm)5.0-15005.0-15005.0-1500
    Tensile strength(MPa)260-320480-580480-580
    Yield strength(MPa)200-260300-380300-380
    Elongation(%)≥37≥15≥15
