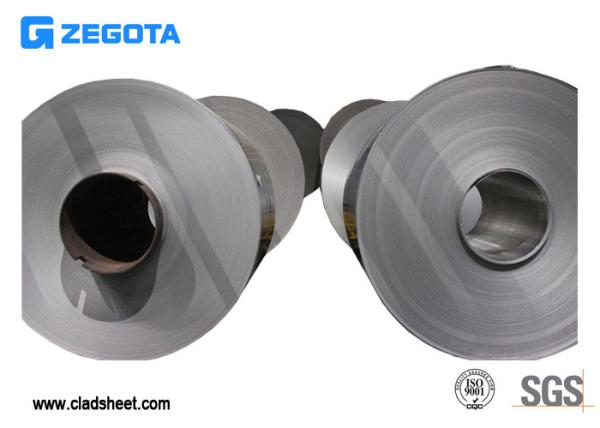

Mature technology Ultra thin Double-deck clad steel plate for
industry
Description:
The steel clad aluminum belongs to the combination of steel and
non-ferrous metals. It is generally divided into stainless steel
clad aluminum, steel clad aluminum, stainless steel clad steel
three forms, stainless steel and aluminum has high thermal
conductivity, corrosion resistance, easy processing and other
characteristics, steel and aluminum has the characteristics of
lightweight and easy welding, high strength, stainless steel has
low cost and corrosion resistance, used to replace stainless steel
and other characteristics. Our high-quality steel clad aluminum,
developed and manufactured by innovative technology, high-end
equipment and high-quality raw materials, have superior
performance, leading high combination rate, ultra-thin and high
combination ratio.
Advantages:
1. Ultrathin: Using unique clad technology, the single outer layer
material with 0.01mm thickness can be cladded with 0.03mm base
material. The total thickness can be up to 0.05mm.
2. High combination rate: We can improve the bonding degree between
materials and the density of the joints between metals through cold
rolling, hot rolling and high rolling force technology. It can
achieve 99.99% bonding degree without voids and bubbles.
3. High composite ratio: When compounding two or more kinds of
materials, high precision and high performance clad materials and
base materials are used to achieve high composite ratio of clad
materials according to their dimensional accuracy and customer
requirements.
Application:
1. Electrical appliances industry: steel clad aluminum is used as
the base plate, which has the advantages of low reflectivity and
scratch resistance. Its thermal conductive aluminum coating is more
durable than the traditional ceramic coating and ensures the
perfect surface.
2. Automobile industry: Steel clad aluminum provides a new
lightweight solution, especially for the technical problems of
crevice corrosion or difficult welding, which promotes the
innovative development of joining and welding.
3. Cookware industry: Uniform heat conduction, lightweight, easy
cleaning and other factors make ZEGOTA clad materials have natural
advantages in making kitchen utensils. Clad design is also
compatible with induction heating range.
Parameter:
| Clad material | Steel | Steel | Steel | Aluminum | Aluminum | Steel | Steel |
| Aluminum | Aluminum | Aluminum | Steel | Steel | Aluminum | Aluminum |
| Aluminum | Steel | / | / | Aluminum | Copper | / |
| Aluminum | / | / | / | / | Aluminum | / |
| Steel | / | / | / | / | / | / |
| Thickness(mm) | 0.1-4.0 | 0.01-4.0 | 0.01-4.0 | 0.01-4.0 | 0.01-4.0 | 0.01-4.0 | 0.01-4.0 |
| Width(mm) | 5.0-1500 | 5.0-1500 | 5.0-1500 | 5.0-1500 | 5.0-1500 | 5.0-1500 | 5.0-1500 |
| Tensile strength(MPa) | 290-360 | 350-420 | 250-310 | 200-260 | 230-320 | 170-220 | 280-390 |
| Yield strength(MPa) | 210-280 | 180-260 | 180-250 | 160-230 | 190-280 | 130-160 | 240-340 |
| Elongation(%) | ≥30 | ≥30 | ≥25 | ≥20 | ≥25 | ≥25 | ≥10 |
