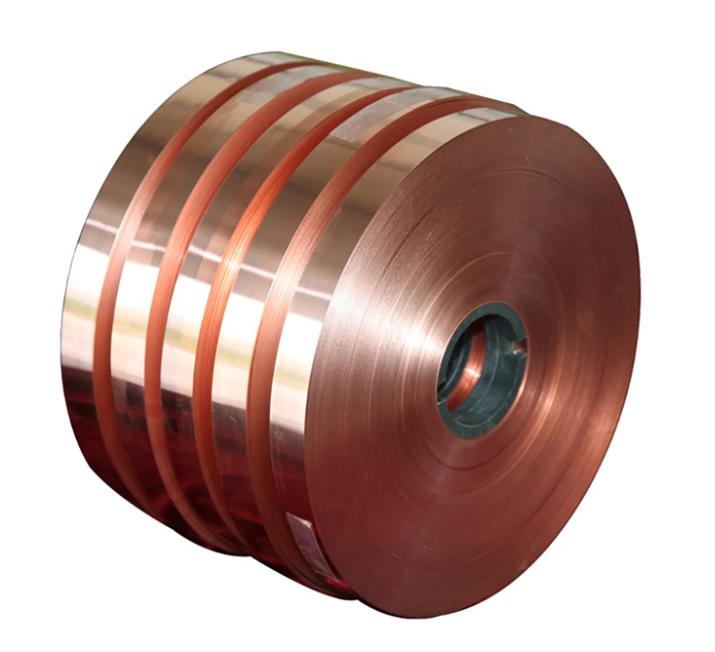

Highly Conductive CuNiSiP C19010 C17200 1/2H T0.1mm BeCu coil for
IC socket
Standard:
| DIN | ASTM | JIS |
| CuNiSiP | C19010 | C19010 |
Chemical composition:
| Cu | Rem |
| Ni | 0.8-1.8 |
| Si | 0.15-0.35 |
| P | 0.01-0.05 |
Physical
properties:
| Density(g/cm3) | 8.9 |
| Electrical Conductivity IACS%(20℃)} | 60min |
| Modulus Of Elasticity(KN/mm2) | 135 |
| Thermal Conductivity {W/(m*K)} | 260 |
Coefficient Of thermal expansion ( 10-6/℃ 20/℃ ~100/℃) | 16.8 |
Physical properties:
| Temper Of Supply | Tensile Strength | Yield strength | Elongation (A50) | Hardness | Bending test |
| 90°(R/T) | 180° (R/T) |
| (Rm,MPa) | (Rp0.2,MPa) | (%) | (HV) | GW | BW | GW | BW |
| R400 | 400-460 | 360min | 8min | 120-150 | 0 | 0.5 | 0.5 | 1 |
| R490 | 490-550 | 410min | 10min | 140-170 | 0 | 0.5 | 1 | 1.5 |
| R520 | 520-590 | 440min | 9min | 150-180 | 0.5 | 0.5 | 1.5 | 2 |
| R580 | 580-650 | 540min | 8min | 170-200 | 1 | 1 | 2 | 3 |
Copper-nickel-silicon alloys are found in the electrical/electronic
industry and utilise the high strength
with the good electrical conductivity,stress relaxation resistance
and corrosion resistance of the alloys.
Typical applications include:
Lead frames,Connectors,Fuse clips,Contact springs,Resistance
welding electrodes,Current carrying
formed parts,Switchgear,Press fit pins,Miniature sockets for
surface mount devices,Power distribution
frets in automotive junction boxes,Clamps for catenary railway
fittings
